Hand Gesture Control Robot Via Bluetooth

This summer I worked to build a robotic car wirelessly controlled by the gestures of your hand. This project was a heavy focus on the electrical engineering side with aspects of mechanical engineering and computer science. The failures along the road, such as the battery exploding, taught me so much on how to think quick on my feet. I learned how much I loved the hands on aspect and the precise nature of certain things like soldering. Building this robot has further my loved for engineering and computer science alike and I know I’ll be pursing more projects like this soon.

Engineer	School	Area of Interest	Grade
Michelle W.	The Bronx High School of Science	Computer Science	Senior

Final Milestone

For my final milestone, I achieved wireless control of the robot car by combining the functionalities of milestones 1 and 2. To integrate both parts, I configured the Bluetooth modules, using the “Bluetooth Configuring Code” below, to establish a connection between the gesture controller and the robot car. This involved setting up the gesture controller as the control device and the robot car as the peripheral. Through the serial monitor, I input commands like “AT+UART” and “AT+ROLE” to adjust baud rates, roles, and other settings.

Once the Bluetooth modules were paired, I re-uploaded the “Gesture Controller Code” and “Robot Car Code” to their respective Arduinos, removing any connecting wires in the process and connecting to their 9-volt power sources. With the successful pairing, the robot car became fully controllable through the wireless gesture controller without any physical connections.

Second Milestone

For my second milestone, I successfully completed all the necessary wiring and additionally assembled the robot car, involving an Arduino Uno, a motor driver, a Bluetooth module, and 6 battery packs. To allow for a 9-volt power supply, I connected the battery packs in series and connected them alongside the wires on the four motors to the motor driver, following Figure 2 in the “Schematics” below.

However, during the setup, I experienced a setback when one of the batteries encountered a short circuit, causing it to pop. For safety reasons, I had to replace the entire battery pack and the motor driver as a precaution. This required me to redo all the related wiring and soldering to ensure that my wiring wouldn’t cause any more issues.

Luckily, afterwards, everything seemed to be in good shape, so we were finally able to test the motors with a basic test code (provided below called “Motor Test Code) to ensure they were functioning correctly before uploading the full actual code. Following a few additional minor adjustments, the car was capable of moving in all four directions

First Milestone

In my first milestone, I worked with the Arduino Micro and an accelerometer as my main components to establish a reliable and accurate connection. Initially, I wired the breadboard according to Figure 1 in “Schematics” below. However, immediately upon attempting to retrieve data from the serial monitor, I encountered a consistent timeout message indicating an inability to establish a connection.

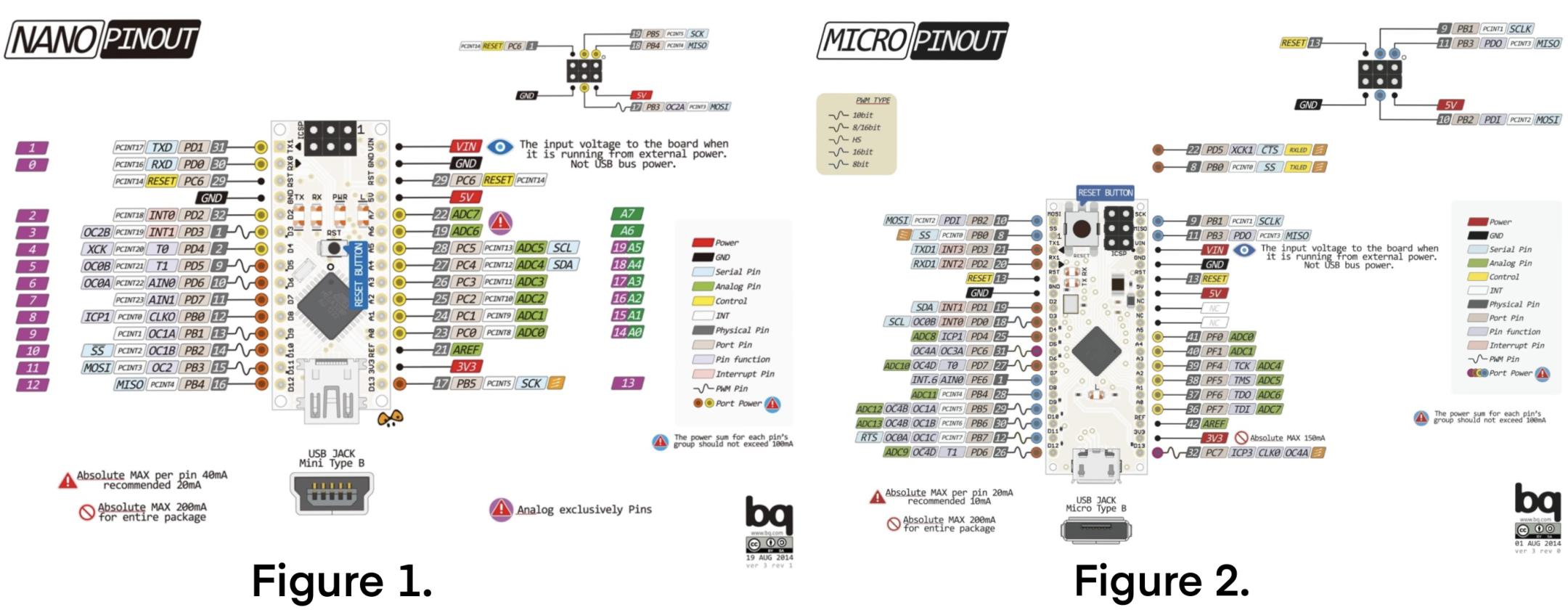

Further research helped us realize that the schematic I followed was intended for an Arduino Nano (figure 1 on the left), whereas I was using an Arduino Micro (figure 2 on the right). Fortunately, this was an easy fix and I compared the pinouts of the two boards, making the necessary adjustments to my wiring. The biggest issue being that certain pins overlapped, forcing me to modify certain pin numbers in my code.

I encountered no further issues as I reconnected the Arduino to the power source, opened up the serial monitor once more, and was able to obtain consistent and updated values for X, Y, and Z from the accelerometer (code provided below called “Gesture Controller Code”). The X and Y values would be used to detect specific gestures (forward, backward, left, or right) and subsequently, the corresponding commands would be sent to the Bluetooth module, allowing me to be able to control the robot car in the near future.

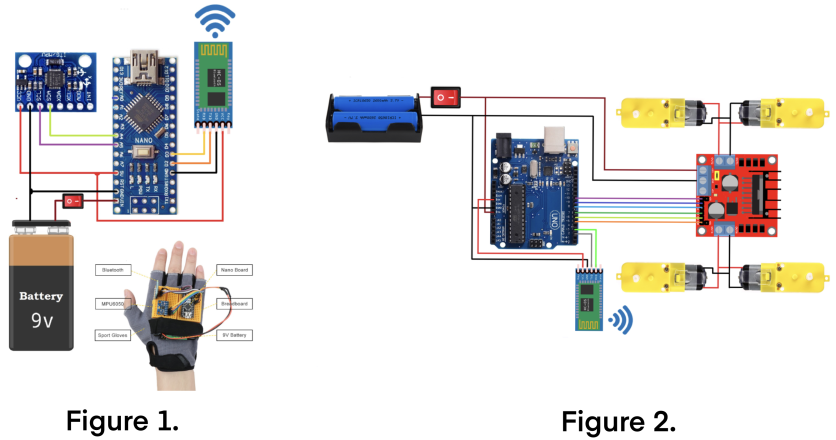

Schematics

Code

Gesture Controller Code:

#include <SoftwareSerial.h>
SoftwareSerial BT_Serial(7, 8); // RX, TX

#include <Wire.h> // I2C communication library

const int MPU = 0x68; // I2C address of the MPU6050 accelerometer
int16_t AcX, AcY, AcZ;

int flag=0;

void setup () {// put your setup code here, to run once

Serial.begin(38400); // start serial communication at 38400bps
BT_Serial.begin(38400);

// Initialize interface to the MPU6050
Wire.begin();
Wire.beginTransmission(MPU);
Wire.write(0x6B);
Wire.write(0);
Wire.endTransmission(true);

delay(500);
}

void loop () {
Read_accelerometer(); // Read MPU6050 accelerometer

if(AcX<60  && flag==0){flag=1; BT_Serial.write('f');}
if(AcX>130 && flag==0){flag=1; BT_Serial.write('b');}

if(AcY<60  && flag==0){flag=1; BT_Serial.write('l'); }
if(AcY>130 && flag==0){flag=1; BT_Serial.write('r');}

if((AcX>70)&&(AcX<120)&&(AcY>70)&&(AcY<120)&&(flag==1)){flag=0;
BT_Serial.write('s');
}

delay(100);
}

void Read_accelerometer(){
      // Read the accelerometer data
Wire.beginTransmission(MPU);
Wire.write(0x3B); // Start with register 0x3B (ACCEL_XOUT_H)
Wire.endTransmission(false);
Wire.requestFrom(MPU, 6, true); // Read 6 registers total, each axis value is stored in 2 registers

AcX = Wire.read() << 8 | Wire.read(); // X-axis value
AcY = Wire.read() << 8 | Wire.read(); // Y-axis value
AcZ = Wire.read() << 8 | Wire.read(); // Z-axis value

AcX = map(AcX, -17000, 17000, 0, 180);
AcY = map(AcY, -17000, 17000, 0, 180);
AcZ = map(AcZ, -17000, 17000, 0, 180);

Serial.print(AcX);
Serial.print("\t");
Serial.print(AcY);
Serial.print("\t");
Serial.println(AcZ);
}

Motor Test Code:

const int in1 = 9;
const int in2 = 8;
const int in3 = 7;
const int in4 = 6;
const int enA = 5;
const int enB = 10;


void setup() {
  pinMode(in1, OUTPUT);
  pinMode(in2, OUTPUT);
  pinMode(in3, OUTPUT);
  pinMode(in4, OUTPUT);
  pinMode(enA, OUTPUT);
  pinMode(enB, OUTPUT);

  digitalWrite(enA, HIGH);
  digitalWrite(enB, HIGH);
}

void loop() {
  moveForward();
  delay(2000);
  stopMove();
  delay(500);

  moveBackward();
  delay(2000);
  stopMove();
  delay(500);

  turnLeft();
  delay(2000);
  stopMove();
  delay(500);

  turnRight();
  delay(2000);
  stopMove();
  delay(500);
}

void moveForward() {
  digitalWrite(in1, LOW);
  digitalWrite(in2, HIGH);
  digitalWrite(in3, HIGH);
  digitalWrite(in4, LOW);
}

void moveBackward() {
  digitalWrite(in1, HIGH);
  digitalWrite(in2, LOW);
  digitalWrite(in3, LOW);
  digitalWrite(in4, HIGH);
}

void turnRight() {
  digitalWrite(in1, HIGH);
  digitalWrite(in2, LOW);
  digitalWrite(in3, HIGH);
  digitalWrite(in4, LOW);
}

void turnLeft() {
  digitalWrite(in1, LOW);
  digitalWrite(in2, HIGH);
  digitalWrite(in3, LOW);
  digitalWrite(in4, HIGH);
}

void stopMove() {
  digitalWrite(in1, LOW);
  digitalWrite(in2, LOW);
  digitalWrite(in3, LOW);
  digitalWrite(in4, LOW);
}

Bluetooth Configuring Code from: Kebba Jammeh

// sets up the Bluetooth Module for the Uno
// This is for the Arduino Uno
// Set up the first bluetooth module

#include <SoftwareSerial.h>

#define tx 7
#define rx 8

SoftwareSerial configBt(rx, tx);

void setup()
{
  Serial.begin(38400);
  configBt.begin(38400);
  pinMode(tx, OUTPUT);
  pinMode(rx, INPUT);
}

void loop()
{
  if (configBt.available())
  {
    Serial.print((char)configBt.read());
  }
  if (Serial.available())
  {
    configBt.write(Serial.read());
  }
}

Robot Car Code:

#include <SoftwareSerial.h>
SoftwareSerial BT_Serial(2, 3); // RX, TX

#define enA 10//Enable1 L298 Pin enA
#define in1 9 //Motor1  L298 Pin in1
#define in2 8 //Motor1  L298 Pin in1
#define in3 7 //Motor2  L298 Pin in1
#define in4 6 //Motor2  L298 Pin in1
#define enB 5 //Enable2 L298 Pin enB

char bt_data; // variable to receive data from the serial port
int Speed = 150; //Write The Duty Cycle 0 to 255 Enable Pins for Motor Speed

void setup() { // put your setup code here, to run once

Serial.begin(38400); // start serial communication at 9600bps
BT_Serial.begin(38400);

pinMode(enA, OUTPUT); // declare as output for L298 Pin enA
pinMode(in1, OUTPUT); // declare as output for L298 Pin in1
pinMode(in2, OUTPUT); // declare as output for L298 Pin in2
pinMode(in3, OUTPUT); // declare as output for L298 Pin in3
pinMode(in4, OUTPUT); // declare as output for L298 Pin in4
pinMode(enB, OUTPUT); // declare as output for L298 Pin enB

delay(200);
}
void loop(){
if(BT_Serial.available() > 0){  //if some date is sent, reads it and saves in state
bt_data = BT_Serial.read();
Serial.println(bt_data);
}

     if(bt_data == 'f'){forword();  Speed=180;}  // if the bt_data is 'f' the DC motor will go forward
else if(bt_data == 'b'){backword(); Speed=180;}  // if the bt_data is 'b' the motor will Reverse
else if(bt_data == 'l'){turnLeft(); Speed=250;}  // if the bt_data is 'l' the motor will turn left
else if(bt_data == 'r'){turnRight();Speed=250;} // if the bt_data is 'r' the motor will turn right
else if(bt_data == 's'){Stop(); }     // if the bt_data 's' the motor will Stop

analogWrite(enA, Speed); // Write The Duty Cycle 0 to 255 Enable Pin A for Motor1 Speed
analogWrite(enB, Speed); // Write The Duty Cycle 0 to 255 Enable Pin B for Motor2 Speed

delay(50);
}

void forword(){  //forword
digitalWrite(in1, HIGH); //Right Motor forword Pin
digitalWrite(in2, LOW);  //Right Motor backword Pin
digitalWrite(in3, LOW);  //Left Motor backword Pin
digitalWrite(in4, HIGH); //Left Motor forword Pin
}

void backword(){ //backword
digitalWrite(in1, LOW);  //Right Motor forword Pin
digitalWrite(in2, HIGH); //Right Motor backword Pin
digitalWrite(in3, HIGH); //Left Motor backword Pin
digitalWrite(in4, LOW);  //Left Motor forword Pin
}

void turnRight(){ //turnRight
digitalWrite(in1, LOW);  //Right Motor forword Pin
digitalWrite(in2, HIGH); //Right Motor backword Pin
digitalWrite(in3, LOW);  //Left Motor backword Pin
digitalWrite(in4, HIGH); //Left Motor forword Pin
}

void turnLeft(){ //turnLeft
digitalWrite(in1, HIGH); //Right Motor forword Pin
digitalWrite(in2, LOW);  //Right Motor backword Pin
digitalWrite(in3, HIGH); //Left Motor backword Pin
digitalWrite(in4, LOW);  //Left Motor forword Pin
}

void Stop(){ //stop
digitalWrite(in1, LOW); //Right Motor forword Pin
digitalWrite(in2, LOW); //Right Motor backword Pin
digitalWrite(in3, LOW); //Left Motor backword Pin
digitalWrite(in4, LOW); //Left Motor forword Pin
}

Bill of Materials

Part	Note	Price	Link
MakerFocus DIY Robot Car Smart Chassis Kit	Robot Car Structure	$17.99	Link
Soldering Iron Kit	Soldering Tools	$19.99	Link
ELEGOO UNO R3 Board	Arduino Uno	$16.99	Link
Arduino Micro with Headers	Arduino Micro	$17.99	Link
2 DSD TECH HC-05 Bluetooth Serial Pass-Through Module Wireless	Wireless connection	$9.99	Link
HiLetgo 3pcs GY-521 MPU-6050 3 Axis Accelerometer	Reads acceleration data	$9.99	Link
HiLetgo 4pcs L298N Motor Driver Controller Board Module	Controls the motors	$11.49	Link
DEYUE Solderless Prototype Breadboard	Electrical connections	$8.59	Link
EDGELEC 120pcs Breadboard Jumper Wires 20cm	Wires	$6.99	Link
AUSTOR 560 Pieces Jumper Wire Kit 14 Lengths	Wires	$11.99	Link
Etekcity Digital Multimeter	Measure electrical values	$12.49	Link
MYFON Micro USB Cable 2 Pack 6FT	Connection	$4.99	Link
8 Pack AA Battery Holder Bundle	Battery Holder	$6.99	Link
Amazon Basics 20-Pack AA Alkaline Batteries 1.5 Volt	Power Supply	$9.70	Link
Eclipse Tools CP-301G Pro’sKit Precision Wire Stripper, 30-20 AWG	Stripping Wires	$6.99	Link
32 In 1 Small Screwdriver Set 30 Bits	Screwdriver	$8.89	Link
